Manufacturer: Athena
Order number: P400485100019
P400485100019

Cylinder kit Athena 125cc Minarelli/Yamaha 125cc 2-stroke, (Yamaha DT 125, Derbi GPR 125, etc..)

Athena

Article out of stock. Delivery time unknown.

€549.90 *

Prices incl. VAT plus shipping costs

Fits for:

DT 125, 1999 bis 2006

DT 125, 1999 bis 2006

GPR 125 2T, 2005 bis 2009

GPR 125 2T, 2005 bis 2009

Low price guarantee ( Seen cheaper? )

Manufacturer: Athena
Order number: P400485100019

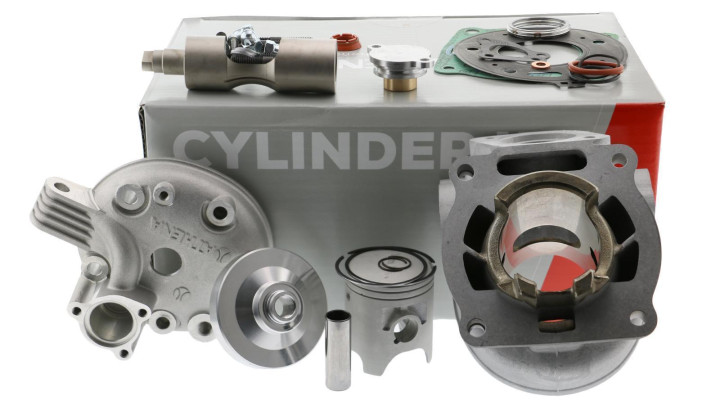

Athena 125cc cylinder kit for Yamaha 125cc LC 2-stroke engines. The cylinder kit consists of an aluminium cylinder, a matching head and gaskets. For the exhaust control a suitable rotating cylinder is included. The cylinder is perfectly suited as a 125cc replacement cylinder with moderate performance optimization when replacement is unavoidable due to piston seizure or wear. According to Athena, the power increase turns around about 2 HP. A control of the carburetor tuning is an absolute must even with such a small performance increase!

OEM number for each original spare cylinder for comparison purposes:

Derbi: OEM 00M12502092

Yamaha: OEM 3MB-11311-00-00/ 4FU-11311-01-00

Technical data

Article number Athena	:	P400485100019
Drilling	:	Ø56mm
Hub	:	50,68mm
Compression ratio	:	13,2:1
Cubic capacity	:	124.7cc
MAXIMUM POWER (HP/RPM)	:	22hp / 11500rpm
Material	:	Aluminium
Class	:	Sports
Including cilinder head	:	Yes
SPECS:BORINGSCATEGORIE	:	Standard
Piston pin	:	Ø16mm

Here you will find the most frequently asked questions and the corresponding answers to this article.

By Samuel on 01.11.2019 19:03. Question:

Hallo ich habe eine Frage! Passt der Zylinder auch bei einer Yamaha Tdr 125 Bj 1998 rein?

Answer:

Da wir den direkten Vergleich nicht durchführen können ist das leider sehr schwer verlässlich zu sagen, es ist aber gut möglich.

helpful not helpful

By Hendrik on 01.02.2020 09:31. Question:

Guten Tag zusammen, ist das Kit auch für eine DT 125 Bj. 1998 passend? Liebe Grüße.

Answer:

Ja das Zylinderkit passt für dieses Modell

helpful not helpful
