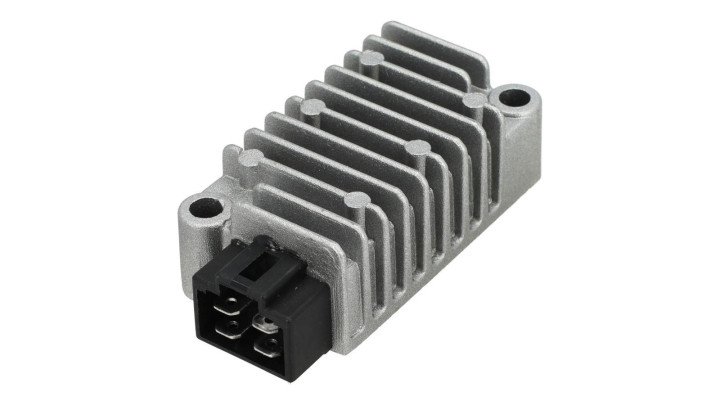

Regulator / rectifier OEM level Yamaha MT125, WR125X, WR125R, YZF-R125 at Bj.

The regulator or rectifier converts the alternating voltage generated by the alternator into a direct voltage of 12V, which is used in the vehicle electrical system. The voltage is kept within a certain tolerance range. This ensures that the battery remains charged and bulbs do not burn out.

As this component is exposed to extreme temperatures, it often fails. If the rectifier or regulator is defective, the battery remains constantly flat. With certain ignition systems, the ignition system can fail, bulbs burn out constantly or the headlights start to flicker.

Yamaha OEM number(s) for comparison purposes:

• 3TJ819600000, 3TJ819600100 replaced by: 3TJ-81960-02-00
• 22BH19600000

Some models are fitted with 2 different regulators, please check the plug connection before ordering and compare it with the picture.

Also suitable for:
TT600R 5CH 600 ccm built from 1997
XT600E 4PT 600 ccm built 1997-2002
XG250 TRICKER 4D6 250 ccm built 2005-2006
TW225E 5VC 225 ccm built 2002
FZ400RR 3TJ 400 ccm Year 1990
TDM850 4CF 850 ccm Year 1991
TDM850 4CF 850 ccm Year 1991-1992
XJ600S 4CF 600 ccm Year 1992-1995
XJ600N 4PT 600 ccm Year 1993-1996
